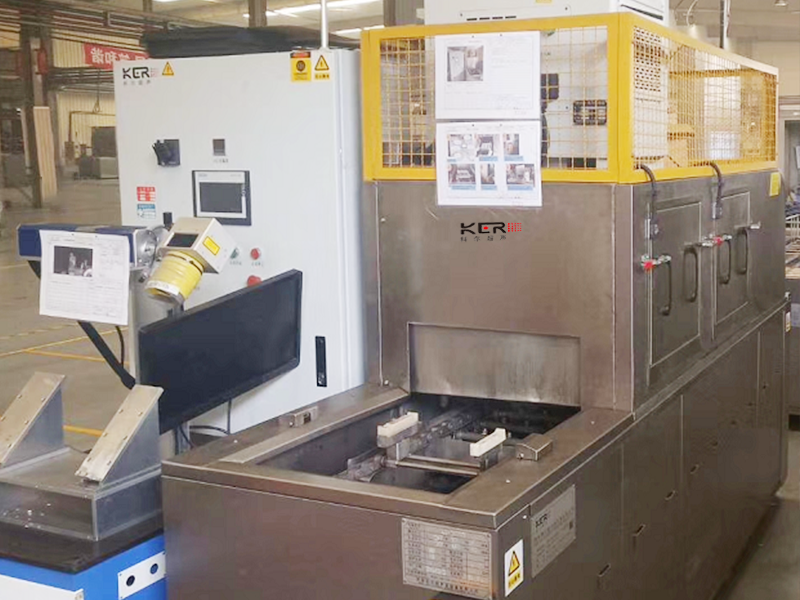

一般生產工業級超聲波清洗機時會考慮采用哪些鋪助系統呢?

What laying assistance systems are generally considered when producing industrial grade ultrasonic cleaning machines?

1.循環過濾系統

1. Circulating filtration system

在該系統中設有過濾器，對槽液進行動態過濾，以維持槽液的清潔度。當工件出槽，經過過濾的液體流經槽體上部的噴淋環節對工件進行一次沖洗，以便沖掉工件出槽，以避免其對下道槽液造成污染。

There is a filter in the system that dynamically filters the tank liquid to maintain its cleanliness. When the workpiece is out of the groove, the filtered liquid flows through the spray section on the upper part of the groove to flush the workpiece once, in order to flush it out of the groove and avoid contaminating the next groove liquid.

2.輸送系統

2. Conveyor system

根據被清洗工件的形狀、體積、批量等確定超聲波清洗機的輸送方式及控制方式。典型的輸送方式有——懸鏈、網帶、雙鏈、步進、電葫蘆、自行葫蘆、滾筒、轉盤、龍門架、機械手、吊籃、推盤等等。

Determine the conveying and control mode of the ultrasonic cleaning machine based on the shape, volume, batch size, etc. of the cleaned workpiece. Typical conveying methods include suspended chain, mesh belt, double chain, stepper, electric hoist, self-propelled hoist, drum, turntable, gantry frame, mechanical arm, hanging basket, push plate, etc.

3.噴淋漂洗系統

3. Spray rinsing system

根據被清洗工件表面狀況，有清洗機配備噴淋漂洗工序，將超聲波清洗和噴淋清洗有機地結合起來。

According to the surface condition of the cleaned workpiece, a cleaning machine is equipped with a spray rinsing process, which organically combines ultrasonic cleaning and spray cleaning.

4.烘干系統

4. Drying system

根據被清洗工件的狀況，有清洗機配備烘干系統，烘干系統主要由加熱器、風機、吹風噴嘴等組成，溫度自動控制。

According to the condition of the cleaned workpiece, a cleaning machine is equipped with a drying system, which mainly consists of a heater, a fan, and a blowing nozzle, with automatic temperature control.
